How to Upload an Object Profile Simplify3d

Adding Support to 3D Printed Files

Major Version M

04/08/2019 past Sabrina Shankar

• The easiest way to get a new fff profile in Simplify 3D is to become to "Aid" in the top toolbar, then "Configuration Assistant", and so select your printer.

• 7th Street Studio & MakerSpace uses the following printers: Lulzbot Mini, Lulzbot Taz 6 Single, Makergear M2 (24V V4 hotend).

• If you wanted a shortcut to download and import these fff profiles follow the post-obit links:

• Makergear fff contour: bit.ly/2h9QNYc

• Lulzbotz Taz fff profile: fleck.ly/2xqGpRV

• Lulzbot Mini fff profile (with supports): https://forum.simplify3d.com/download/fi...

• What is an FFF profile?

• The FFF profile is at the eye of the configuration of your machine and for decision-making settings changes dependent on fabric, quality and extruders in use. - Simplify3D.com

• Why is this important?

• Each type of 3D printer has its own FFF profile. When printing, yous want to make sure yous are selecting the contour for the printer you are using to ensure your file will print correctly. The FFF profile contains settings including temperature, bed sizing, and more.

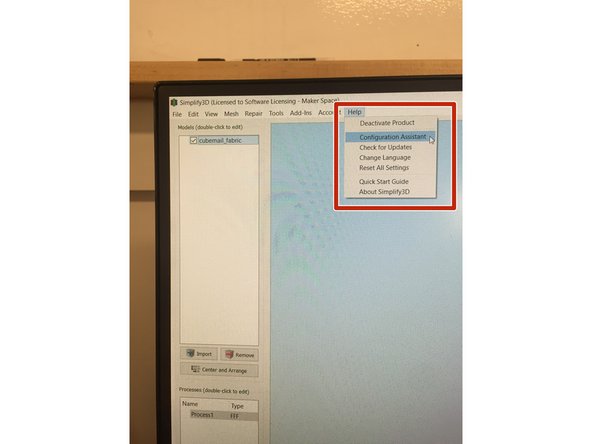

• Simplify 3D already has hundreds of fff profiles located within the program for us to download. Follow the next steps to learn how to do so.

• Later on opening Simplify 3D and importing your file go to the top toolbar and click "Help".

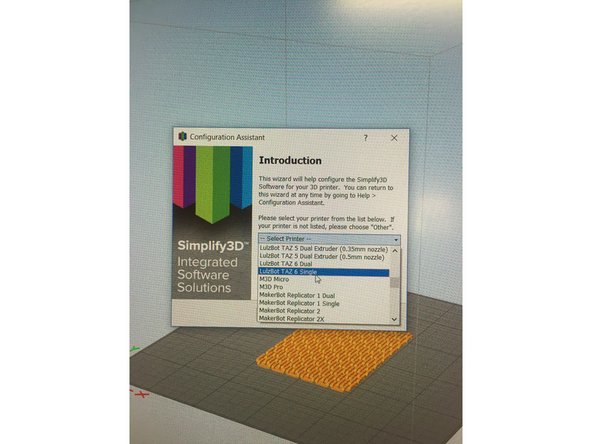

• Then click "Configuration Assistance".

• Yous must be signed in to get to this feature. Login information is located on the white lath in the MakerSpace.

• Once logged in ringlet downward until you notice the 3D printer you are looking to impress on.

• Options in 7th Street Studio & MakerSpace include: Lulzbot Mini, Lulzbot Taz 6 Single, Makergear M2 (24V V4 hotend).

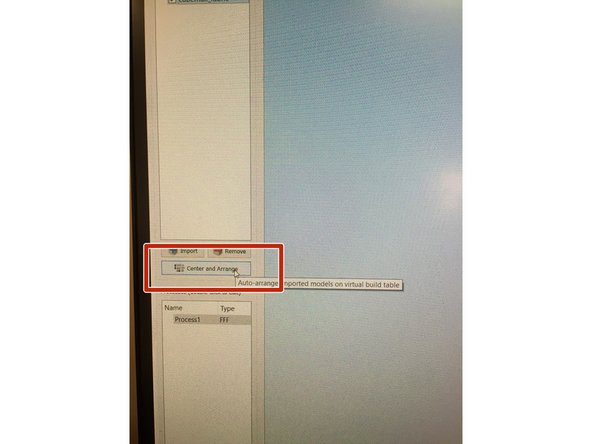

• One time the new contour has been selected yous are probably going to notice that the bed size on which your file is sitting on it going to shift in scale. This new size is the right size of the 3D printer bed you are using then feel gratis to scale your object past double clicking on the object and scaling or centering by clicking "Eye and Adjust".

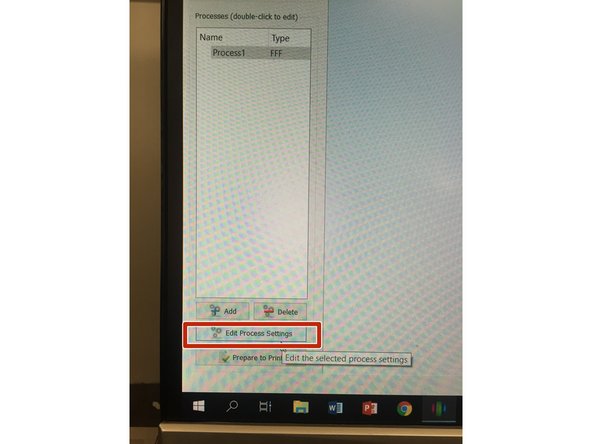

• Now, click on "Edit Procedure Settings" to open up the fff contour settings.

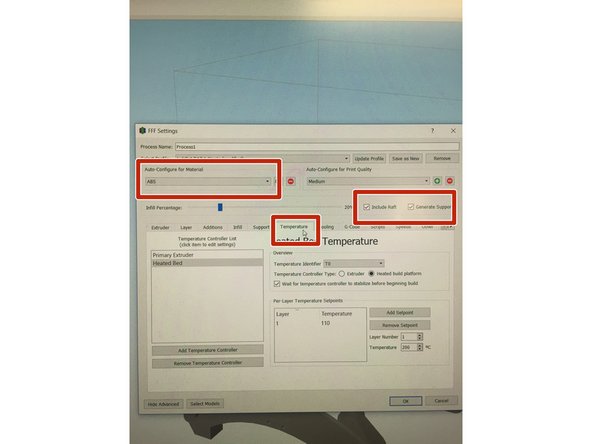

• In this window, we are at present able to add together rafts and supports to our object by checking the boxes located next to the words "Raft" and "Supports".

• Rafts are the bottom most layer that provides a support base for your object to print on. It is recommended to cheque this box.

• Supports are pieces of filament incorporated into your impress to substantially back up the object you are printing. Objects that have an overhang of 45 degrees or greater need support. Supports are easy to remove with your hands just at times might require the help of pliers. You can also utilize Acetone to assistance smoothen out any ridges.

• In one case y'all add your supports and raft, exist sure to check your infill percent then it is not college than xx% , check that you are prepare to the correct filament (ABS or PLA) depending on the filament located in the printer you are using, and double cheque temperature settings.

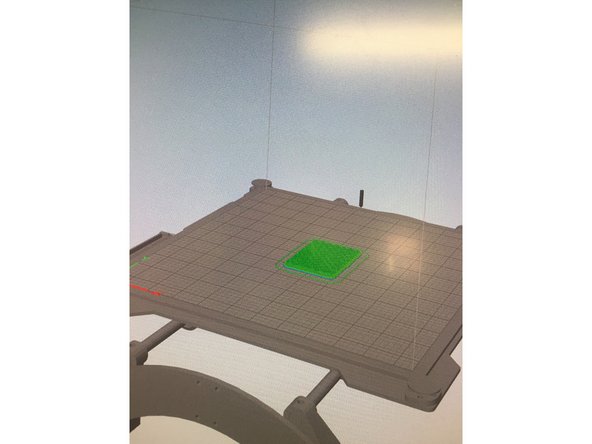

• In one case you lot have ready all of your fff profile settings and are satisfied with your object sizing and centering yous are ready to print.

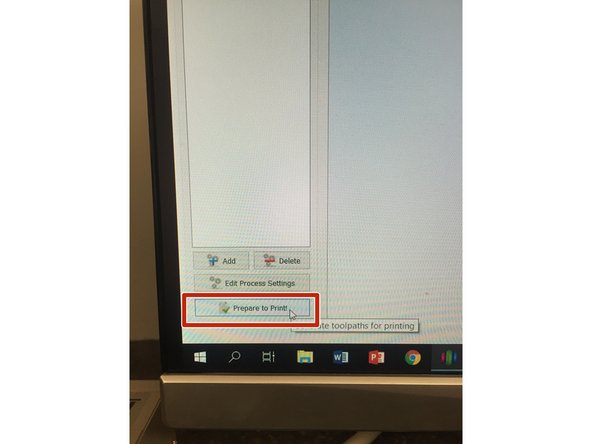

• If you lot added supports, y'all won't encounter them on your file until nosotros go to prepare our file to print.

• In the lesser left corner of the Simplify 3D plan, select "Set up to Impress".

• You should now see your object in one colour surrounded past rafts and supports in some other color.

• If everything looks right, you are at present going to save your file.

• If you are printing on the Makergears or Lulzbot Taz, you must popular an SD Card into the calculator to save your file. Lulzbot Mini files tin can be saved directly to the computer.

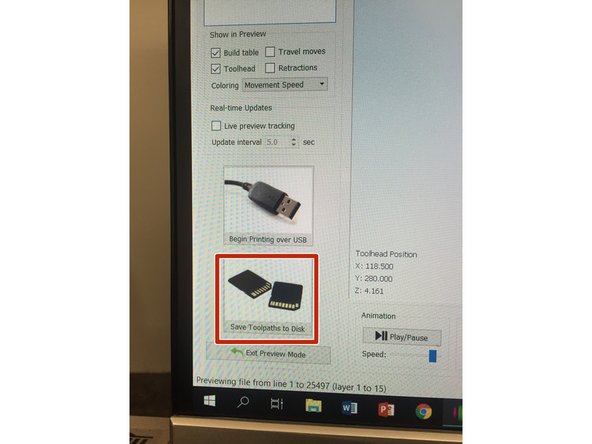

• Click the "Salvage to SD Carte" icon in the bottom left corner then save your file as a .gcode onto the SD Card (makergears and lulzbot taz) or computer itself (Lulzbot mini).

• At present that your file is saved, you are ready to print!

• For Makergears and the Lulzbot Taz, you are going to put your SD Card into the 3D printer and and so follow the steps in those tutorials on how to impress.

• For the Lulzbot Minis, on the computer you are going to open the Octoprint file (an icon on your desktop) that corresponds with the printer you want to apply. Each printer is labeled with a number.

• One time open, proceed every bit you would if you were uploading an .stl file. For .gcodes, the file will be saved to the queue on the left and then you will need to go in and printing the printer icon.

• For more data on how to finalize printing steps please reference the specific auto tutorials!
